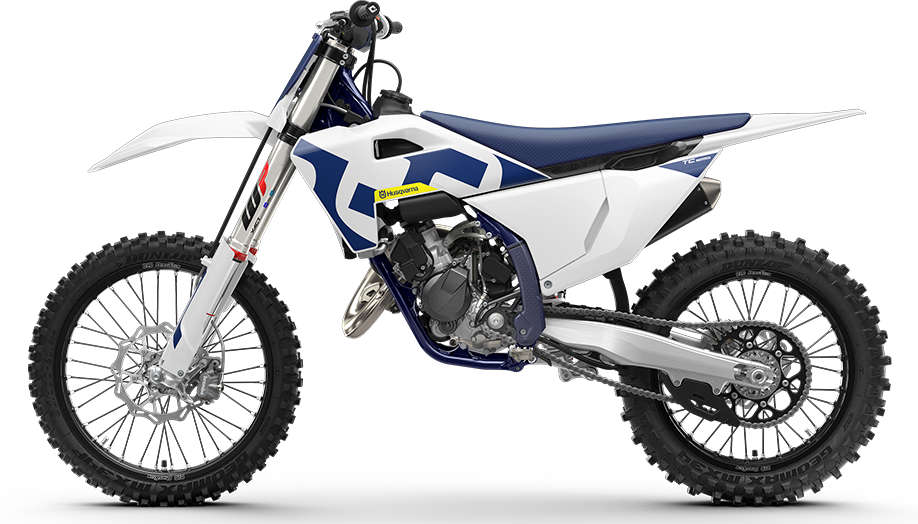

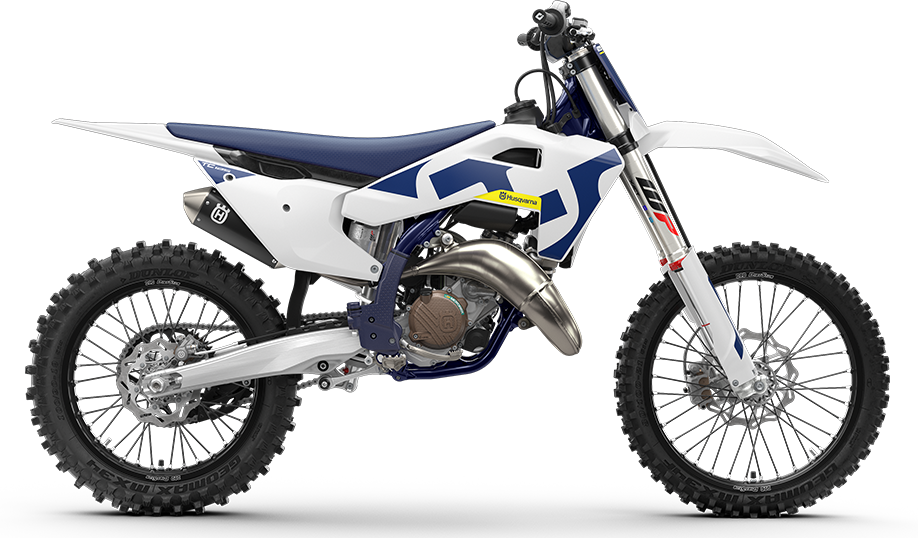

TC 125

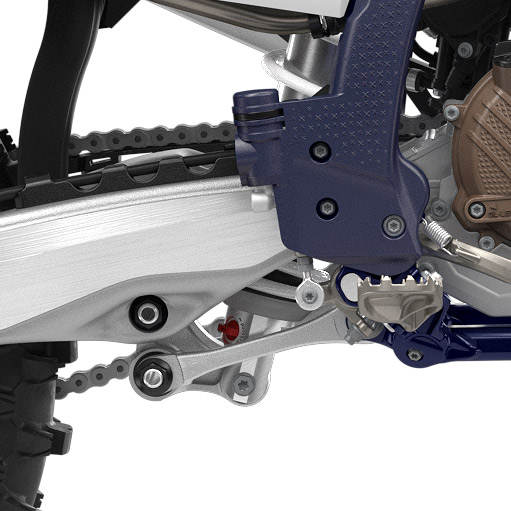

With an optimised distribution of material around the steering head and upper shock mount, the frame delivers confidence-inspiring handling and assured stability when entering corners. To complement the overall look of the machine, the chromium molybdenum chassis is finished with a premium, metallic blue powder coating. The finishing touches are the frame protectors, which not only protect the paintwork, but also provide riders with additional grip, even in the toughest conditions.

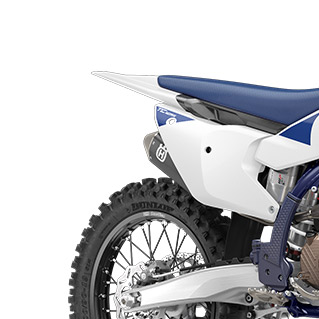

Made from 60% polyamide and 40% aluminium, the two-piece subframe ensures exceptional strength and durability at an overall weight of just 1.8 kg. The lower subframe spars and frame mounts are manufactured from cast aluminium for significantly improved reliability. The upper section of the subframe is made from injection-moulded polyamide to enable specific flex characteristics and ensure a lightweight construction.

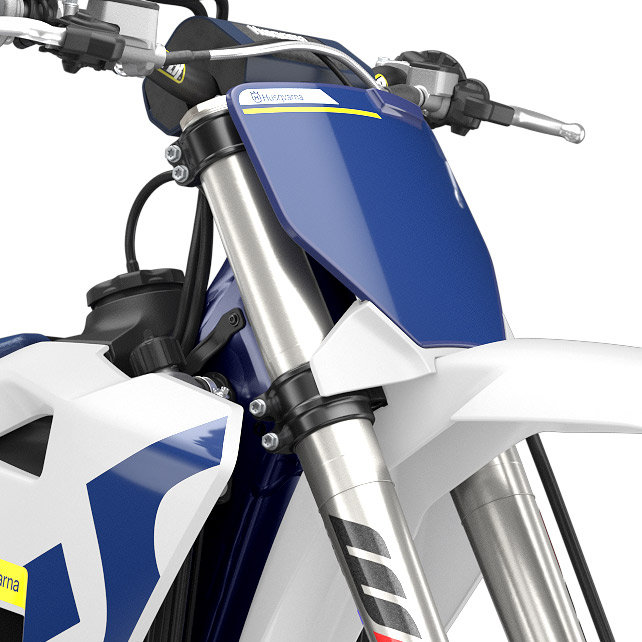

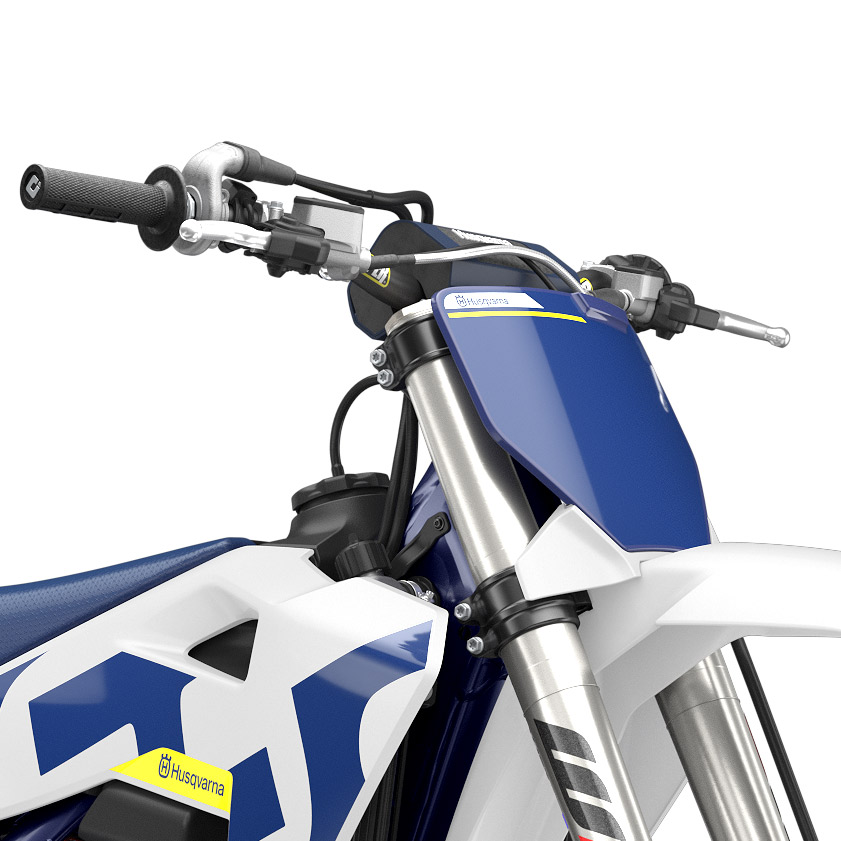

Working in unison with the frame design and suspension set-up, the CNC-machined triple clamps endure precisely calculated geometry for increased stability. Handlebar flex can be customised with the handlebar clamp, which offers two mounting options – rubber-damped for less vibration, or fixed for enhanced front-end feedback. The upper triple clamp is stiffer to ensure a smoother fork action and plays a vital role in the perfect alignment of the front wheel for superior handling.

Rigorously tested by the WP research and development department, the 48 mm WP XACT forks fitted to the TC 125 provide exceptional comfort. Inside the forks, mid-valve pistons optimize oil flow and prevent foaming for consistent and predictable damping at all times. A hydrostop, active in the final 40 mm of travel, reduces the impact of harsh and high-speed landings to maintain forward momentum. Both compression and rebound settings can be quickly adjusted by hand using the easily accessible clickers located on top of each fork leg.

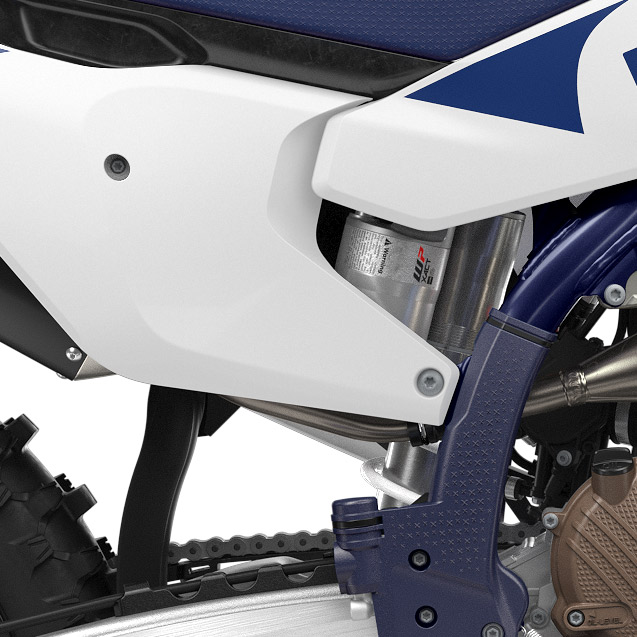

The WP XACT rear shock features a Computational Fluid Dynamics (CFD) optimised main piston, ensuring superior initial comfort and predictable performance in all conditions. To give riders the option of creating a personalised set-up, rebound, as well as the high and low-speed compression settings, can all be adjusted easily by hand.

The swingarm is manufactured using a die-cast production process and designed with a calculated level of rigidity. To further complement and optimise the flex characteristics of the chassis, a 22 mm rear wheel axle is utilised. A durable chain slider is neatly integrated into the swingarm, ensuring uninterrupted forward momentum through deeply rutted corners.

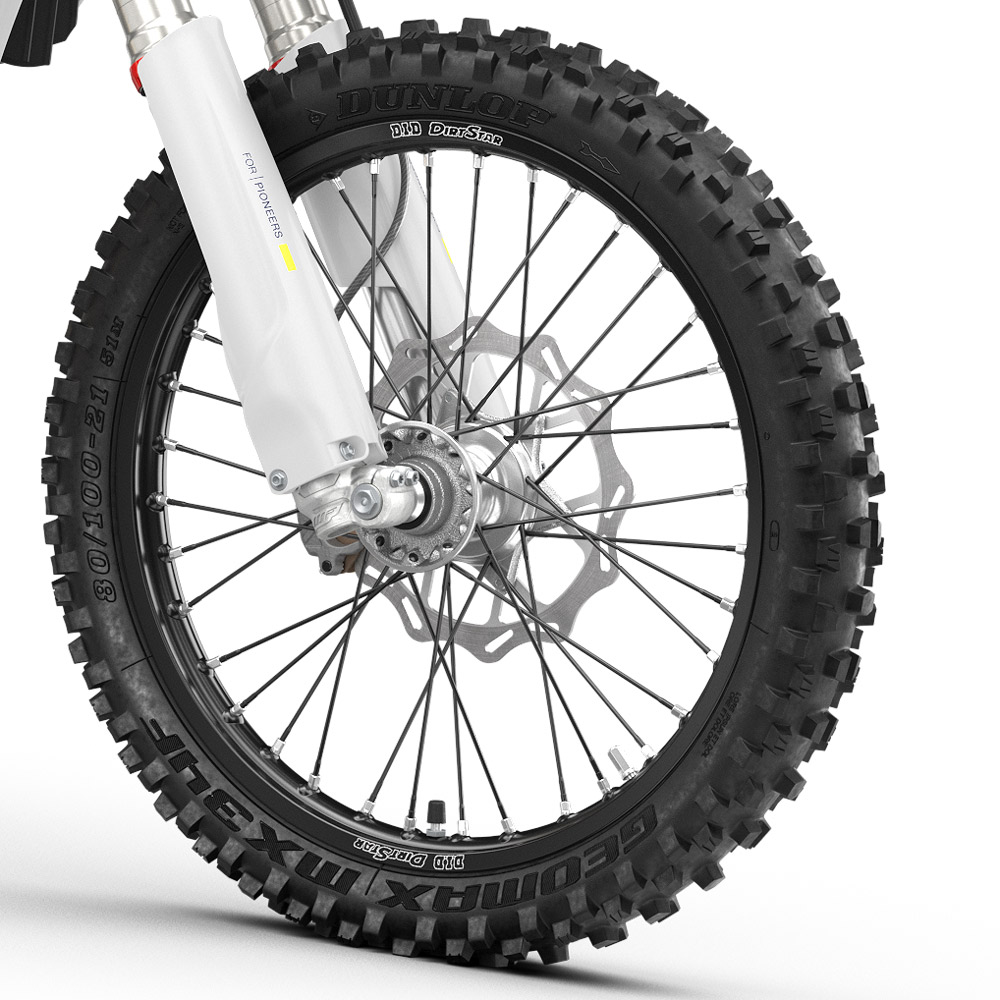

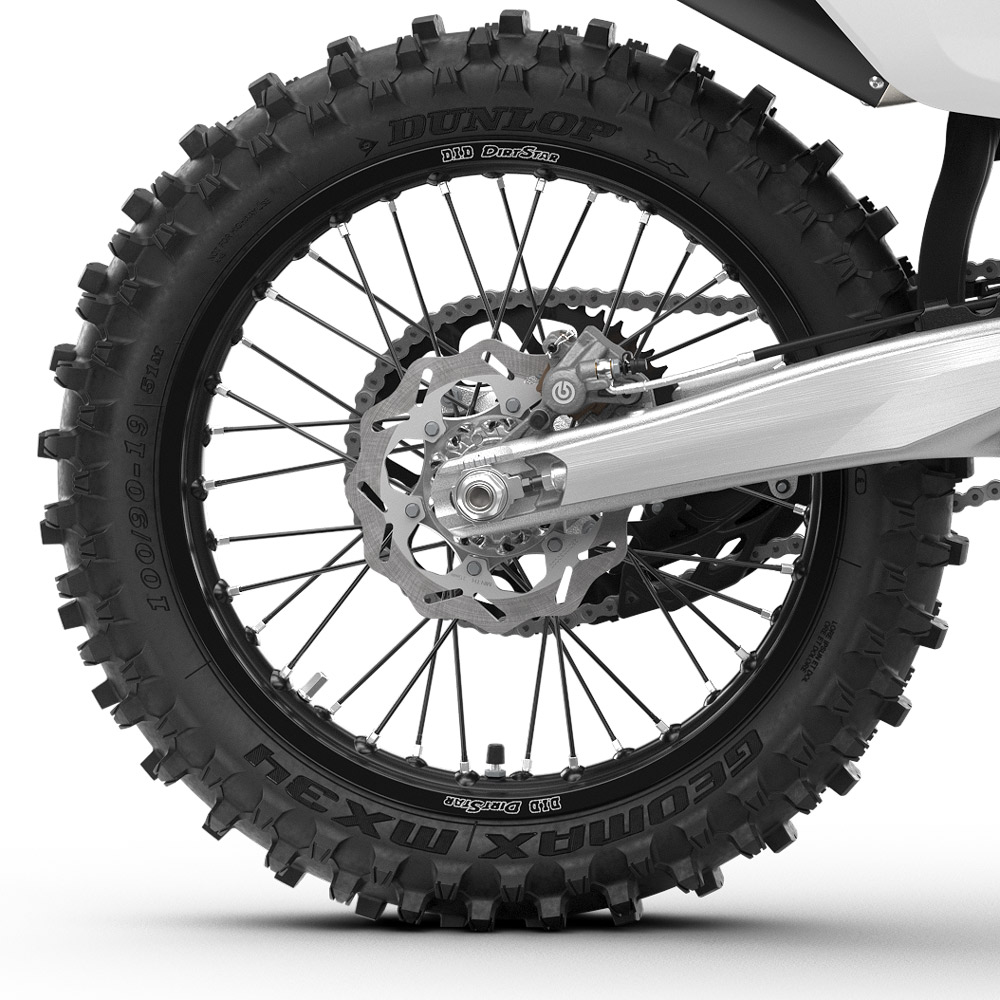

CNC-machined hubs, strong spokes, and high-strength, black-anodised alloy rims by D.I.D are used to assemble the wheels. They are complete with the latest Dunlop MX34 tyres, with the front ensuring precise cornering, while the rear provides excellent traction across varied terrain.

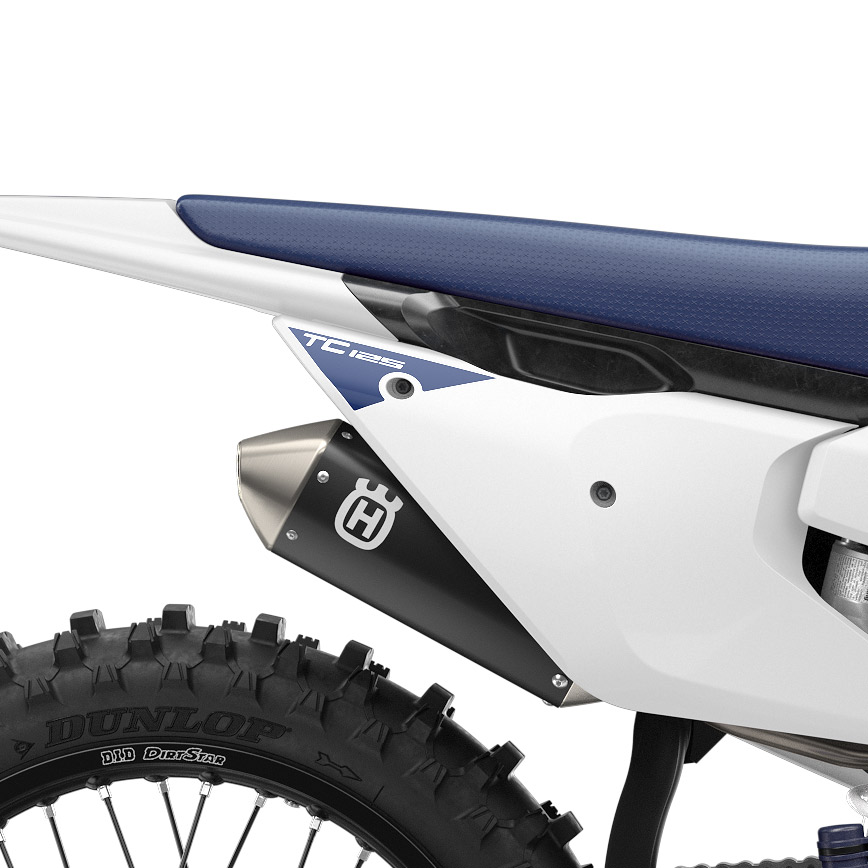

Tailored specifically to the TC 125 engine using an innovative 3D design process, the exhaust pipe ensures maximum power across the rev range. The silencer is easily mounted using an aluminium bracket for strength at the lowest possible weight, with an advanced internal construction ensuring excellent noise damping without sacrificing performance.

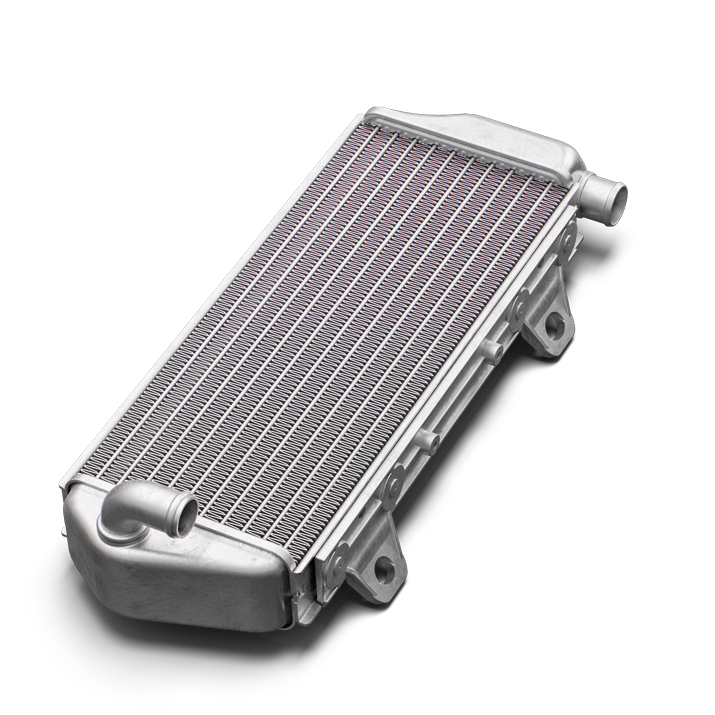

Manufactured from high-strength aluminium, the radiators are designed using Computational Fluid Dynamics (CFD) to channel air through them in the most effective way. A large centre tube through the frame reduces pressure at this point in the system for a consistent coolant flow, while an internal thermostat further enhances reliability. A reliable, threaded radiator cap allows for easy inspection of the coolant level before each ride.

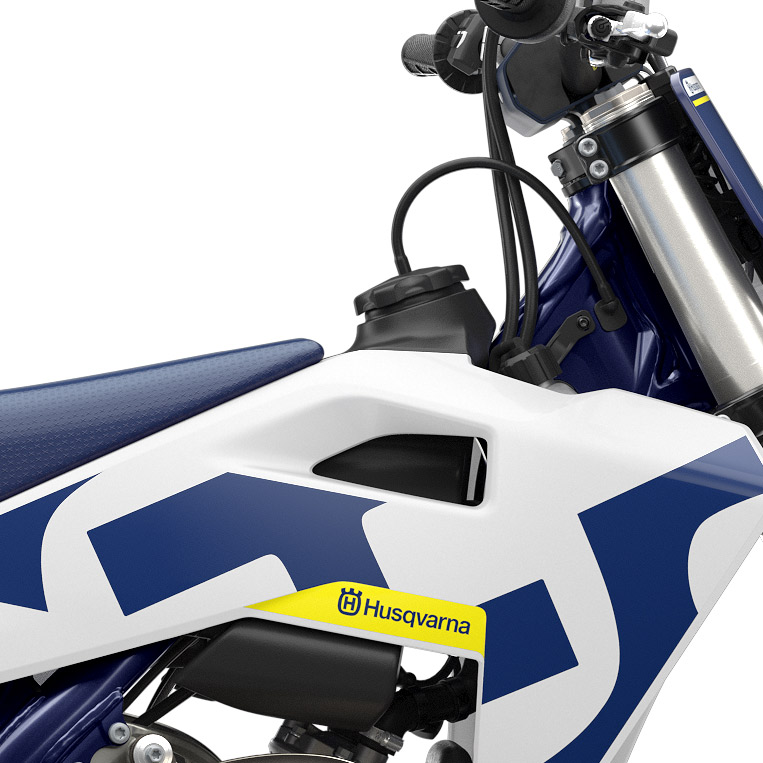

The 7.2-litre fuel tank integrates neatly within the ergonomic bodywork and features a strong rubber cushion beneath it to protect the frame from wear. For maximum durability, the external fuel line is specifically routed to make it less exposed and susceptible to damage. Additionally, the protective cap for the fuel filter prevents dirt and water from entering the system and shields it from impact damage.

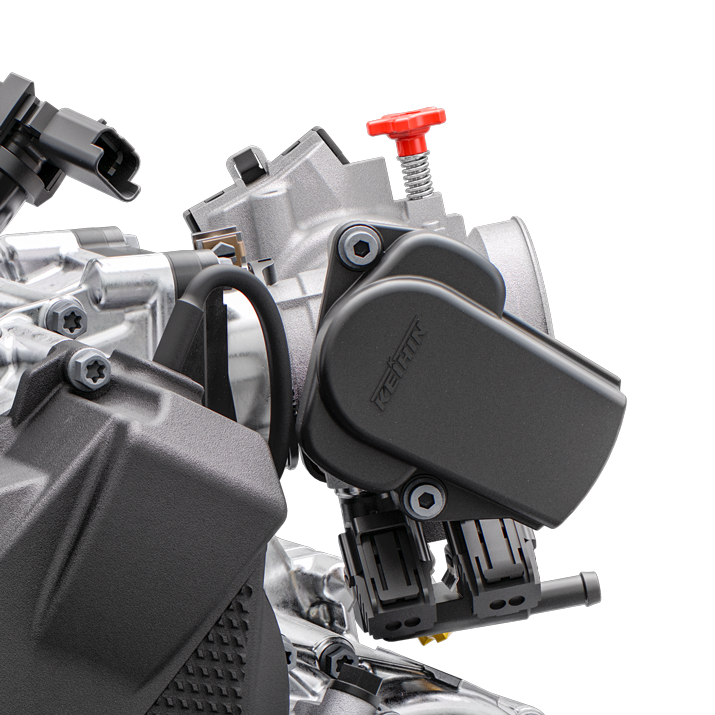

The electronic fuel injection system on the TC 125 brings many benefits. The ECU constantly analyses the running condition of the engine and guarantees to deliver the perfect air/fuel ratio at all times through the state-of-the-art 39 mm Keihin throttle body. EFI also introduces two different engine maps, which can easily be activated via the handlebar-mounted switch for a personalised riding experience. Map 1 (white) is the standard map for linear, progressive power designed for hard pack while Map 2 (green) is more aggressive and suited to sand and heavier track conditions. Additionally, a redesigned reed valve system improves intake tract sealing and prevents excess fuel building up, which would lead to rich running of the engine in extreme up or downhill sections.

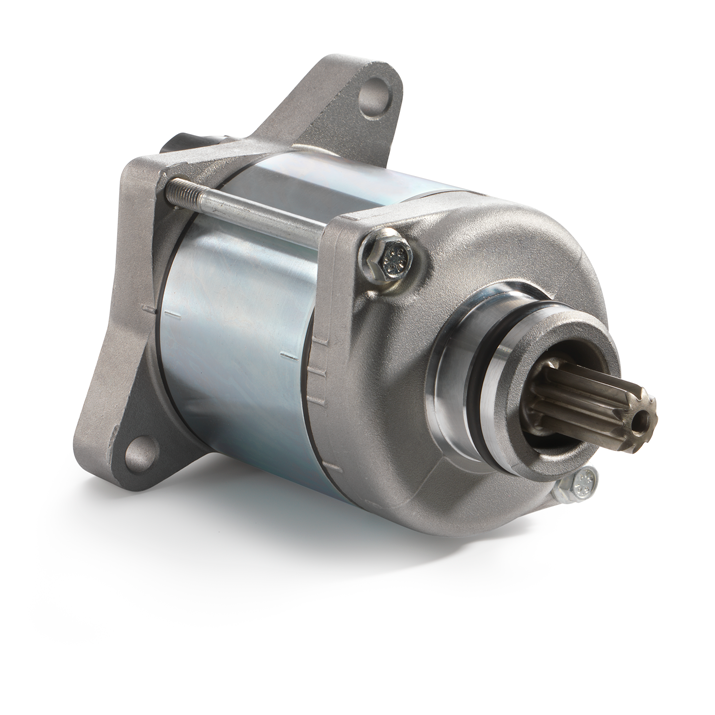

To ensure fast starting in all conditions, the TC 125 features a highly reliable electric start. The system removes the need for a kickstart completely and the additional space created above the engine is used to house the EFI and electronic exhaust control. With the 12.8V 2 Ah Lithium-Ion battery located under the seat and close to the centre of gravity, the handling of the TC 125 is uncompromised. The engine is easily started and stopped via the same handlebar-mounted switch for improved ease of use.

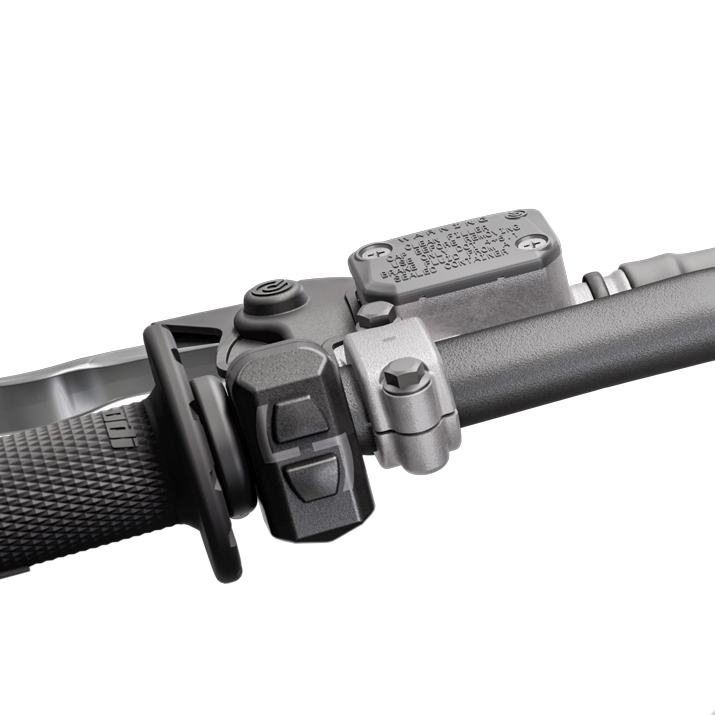

The electronic fuel injection (EFI) on the TC 125 offers two engine maps to suit different track conditions. Map 1 (white) is designed for hard pack and slippery tracks as it delivers linear, predictable power. Map 2 (green) is aggressive and designed for sand and heavy track conditions to ensure maximum performance and reliability. Riders can easily engage either map by pressing a button on the handlebar-mounted Map Select Switch.

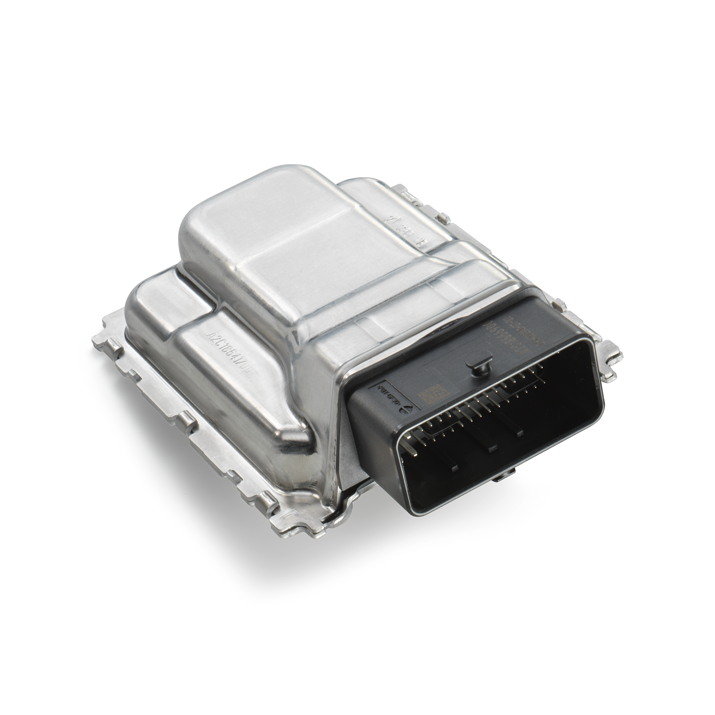

The Engine Management System (EMS) is designed to be small, light, and fast at processing data. It incorporates a Rollover Sensor (ROS) that cuts the ignition and shuts off the engine in the event of a severe crash for an additional layer of safety.

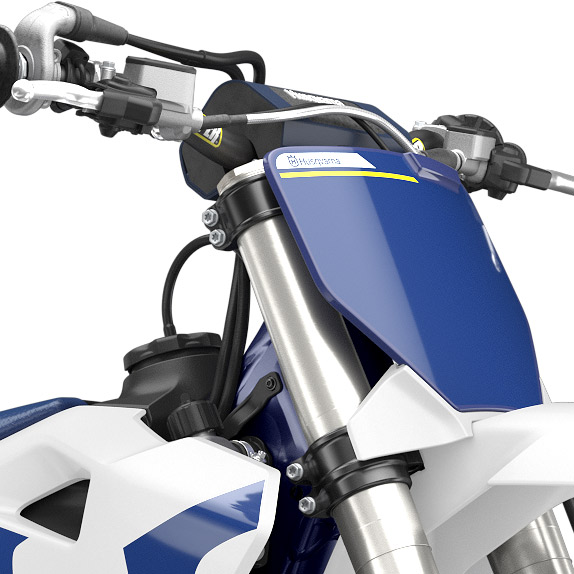

The hour meter comes with an integrated fuel level indicator, which is visible on the FI status LED, and warns the rider when the fuel level is getting low.

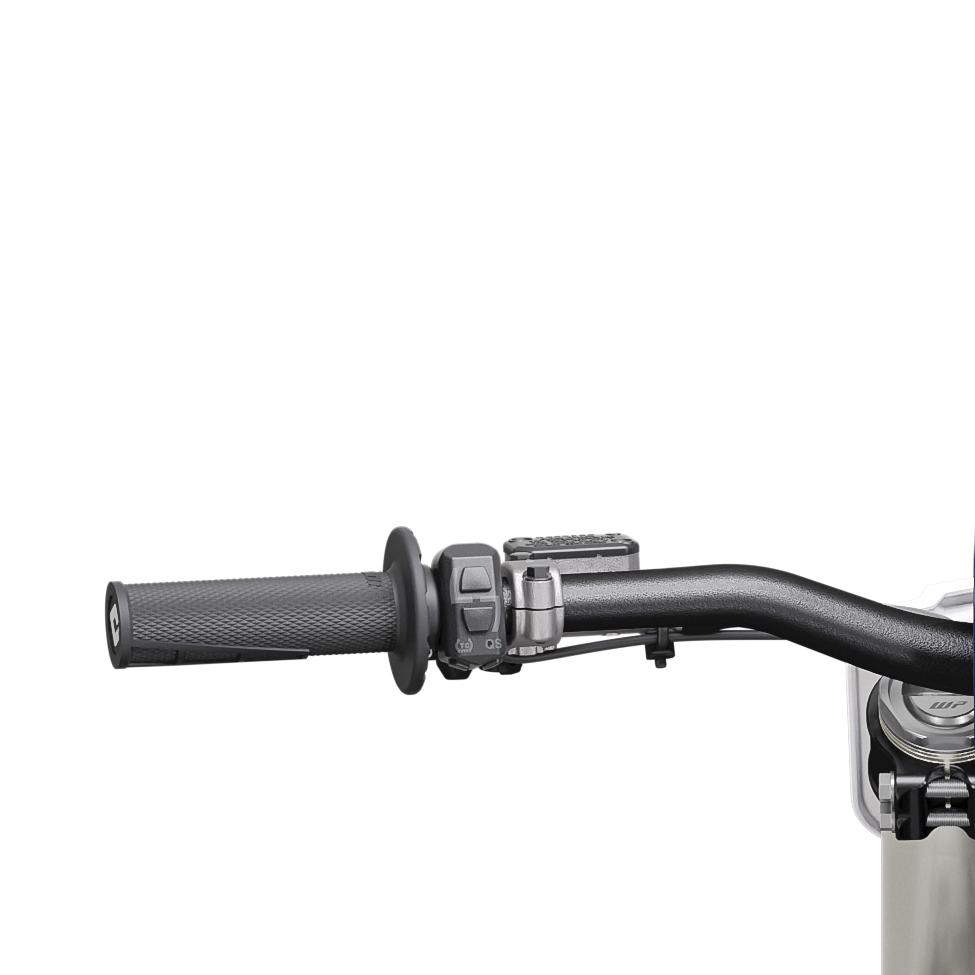

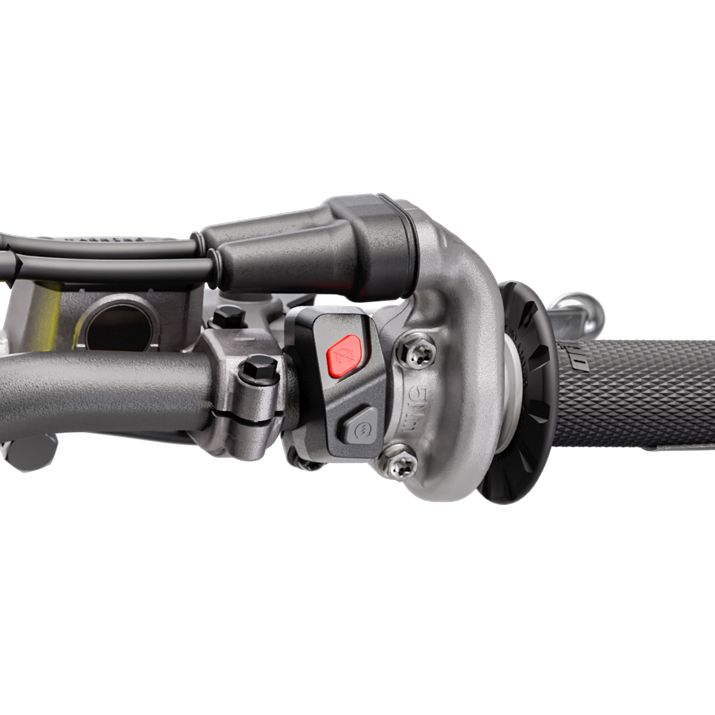

The combined engine start/stop switch is located on the right side of the handlebar for easy, thumb-operated use. Not only simplifying the starting and stopping of the engine, but the removal of an additional stop only button from the handlebar reduces the risk of potential damage or activation in the event of a fall.
